Cooling Units for Hazardous Areas – SpectraCool & Vortex (IP56, Type 4/4X)

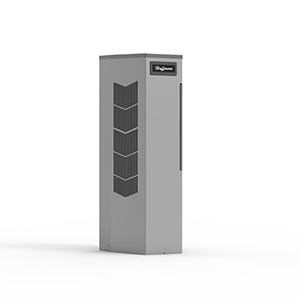

SpectraCool for Hazardous Areas
The SpectraCool air conditioning unit was specifically developed for explosive environments – for example, in the oil and gas industry, chemicals, pharmaceuticals, or mining.
- Compact design – suitable for 300 mm deep enclosures
- Stainless steel housing (316L) for Type 4X
- No purge/pressurization system required
- Temperature range: –40 °C to +55 °C
- Refrigerant: R134a
- Connection: Terminal block
- Certifications: CE, cULus
- Approval: Class I, Div 2, Groups A–D
Vortex Cooling Unit for Hazardous Areas
The HazLoc Vortex A/C is a compact, pneumatically operated solution with minimal maintenance requirements – ideal for retrofitted enclosures in hazardous zones.
- Temperature control via mechanical thermostat (24–38 °C)
- Reduces condensation through continuous operation
- Flexible mounting: top, side, or front
- Material: Polycarbonate, stainless steel, aluminum
- Certifications: cULus
- Approvals:
- Class I, Div 2, Groups A–D
- Class II, Div 2, Groups F, G
- Class III (with pressure/purge system)
